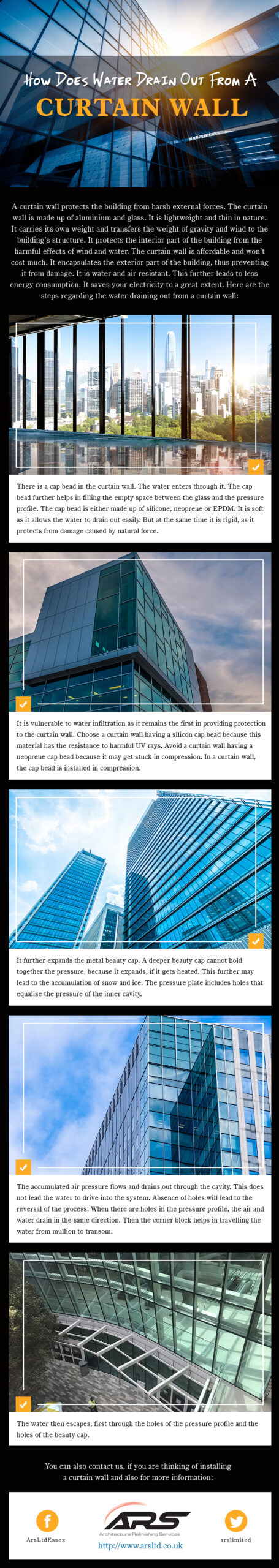

Water Drainage Through the Curtain Wall System
A curtain wall is a light weight outer covering system, usually built using aluminium and glass. It shields buildings from tough weather conditions like rain, wind, and extreme temperatures, but also helps the overall look of modern architecture. These curtain walls are made so they can stand up against air and water getting in, while still moving structural loads in a safe way to the building frame. With good maintenance, meaning curtain wall repair and routine inspections, you keep things working well for years and support long-term durability.
An effective curtain wall system is built with drainage channels, so water can get out safely from the structure. Sometimes water might find its way in through the outdoor joints during heavy rain, but with the more advanced drainage approach, it won’t really carry moisture into the inside of the building. During curtain walling repairs, the professionals often take a close look at the drainage corridors and make sure they stay unobstructed and working as intended.
Role of the Cap Bead in Drainage
The cap bead is like a small but essential piece that actually creates a little space between the glass and the pressure profile. That gap helps the water drain out in a smoother, more efficient way, yet it still keeps the wall structurally strong. Also, it serves as a kind of shield, protecting the curtain wall from environmental wear, mainly from wind, rain, and temperature swings. During curtain wall refurbishment work, proper installation as well as ongoing maintenance is crucial, because if it’s not done right, you can end up with more leakage issues later on.
Importance of Durable Materials
These kinds of facades need a strong, weather-resistant substance to provide long-term protection. Aluminium pressure caps and top-notch glazing materials certainly help boost UV resistance and lower the chance of water infiltration. And yes, having regular curtain wall repair services can fix damaged seals, weakened joints, and those worn-out components before they start becoming major structural trouble.
Pressure Equalisation System
The pressure profile inside a curtain wall sort of balances the internal air pressure with what’s outside. There are small drainage holes inside the pressure plate, and they let trapped air and water move through the cavity without getting stuck. This whole equalisation process helps stop water from being pushed into the building, especially during storms or high winds. During curtain walling repairs, technicians often check those drainage holes too, just to make sure airflow stays efficient and moisture control stays under control, basically.
Drainage Through the Internal Cavity
Once water gets inside, it moves downward through specially designed drainage channels. The arrangement is set up so it can steer moisture away from the building, without harming the internal surfaces. Corner blocks, along with pressure profiles, help shift water from one area toward another until it leaves via the appointed drainage points. Proper servicing and curtain wall refurbishment can make the whole arrangement work better, and also stretch the façade’s life a bit longer.
Final Water Escape Process
In the last step, the drainage system lets water out through openings found in the pressure profile and also through the external beauty cap. This method avoids moisture staying around, helps stop mould growth, and reduces the chance of structural wear. Many building owners will pair drainage upgrades with spraying and cladding services to freshen up the look of the building while giving additional weather shielding and better surface resilience.
Benefits of Curtain Wall Maintenance
If you keep up with routine checkups and have professionals handle the job, the curtain wall system tends to keep working well and looking sharp. Things like refurbishment, repair, spraying and cladding support better energy use, lower the chance of water issues, and help maintain that clean, modern look most commercial buildings need.
